Fireproof Coating

DC315 Fireproof Paint

Thermal and Ignition Barrier for Spray Polyurethane Foam (SPF). DC315 Fireproof Paint is a fully tested and approved intumescent coating to meet 15 minute Thermal Barrier and Ignition Barrier protection over Spray Polyurethane Foam (SPF). DC315 meets IBC/IRC codes in the USA, Canadian NBCC and many international Building Code Requirements.

DC315 tested solutions for Spray Polyurethane Foam

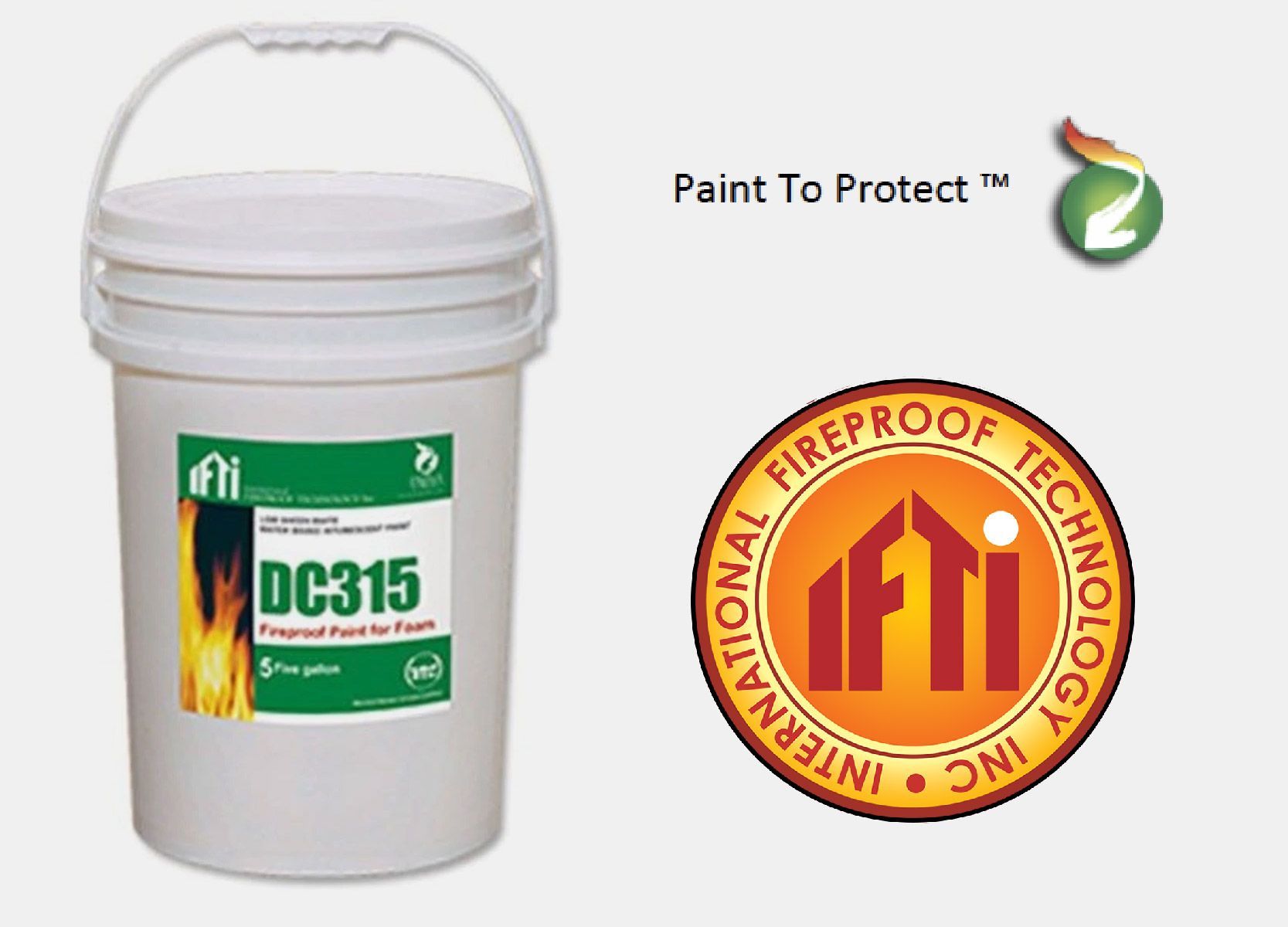

A bucket of dc315 fireproof technology paint

Advantages of Using DC315 over Spray Polyurethane Foam:

  • More certified full scale Thermal and Ignition Barrier tests than any other product in the world

  • DC315 manufacturing facilities are 3rd. party inspected for Quality Control.

  • Listed under Warnock Hersey Intertek W/N 20947 Tested useful life, fire resistant property is not compromised after 50 years

  • Top coat for color, weather, and moisture protection, tested via NFPA 286 full scale testing

  • ANSI 51 testing for incidental food contact

  • Passed CAL 1350 – qualifies DC315 as a low-emitting material in the Collaborative for High Performance Schools rating system (CHPS Designed & CHPS Verified)

  • Passed strict EPA – VOC and AQMD air emission requirements Single Coat Coverage up to 24 Mils WFT on ceilings and walls – reducing labor costs equaling higher profits

  • Meets Life Safety Code 101

  • Meets LEED’s point requirements

  • No formaldehyde

Get a Quote

Cementitius

Cementitious waterproofing coatings are a type of breathable coating that can provide waterproofing for both positive and negative sides of concrete and masonry surfaces.


Positive-side waterproofing establishes a waterproof barrier on the side of the surface facing the source of hydrostatic pressure. For instance, in the context of a foundation, it would be the outer surface closest to the soil. In contrast, negative-side waterproofing safeguards the surface opposite the side experiencing hydrostatic pressure. An example of this would be the interior surface of a basement wall. These coatings not only help keep moisture at bay but also offer protection against mold, mildew, and water infiltration.

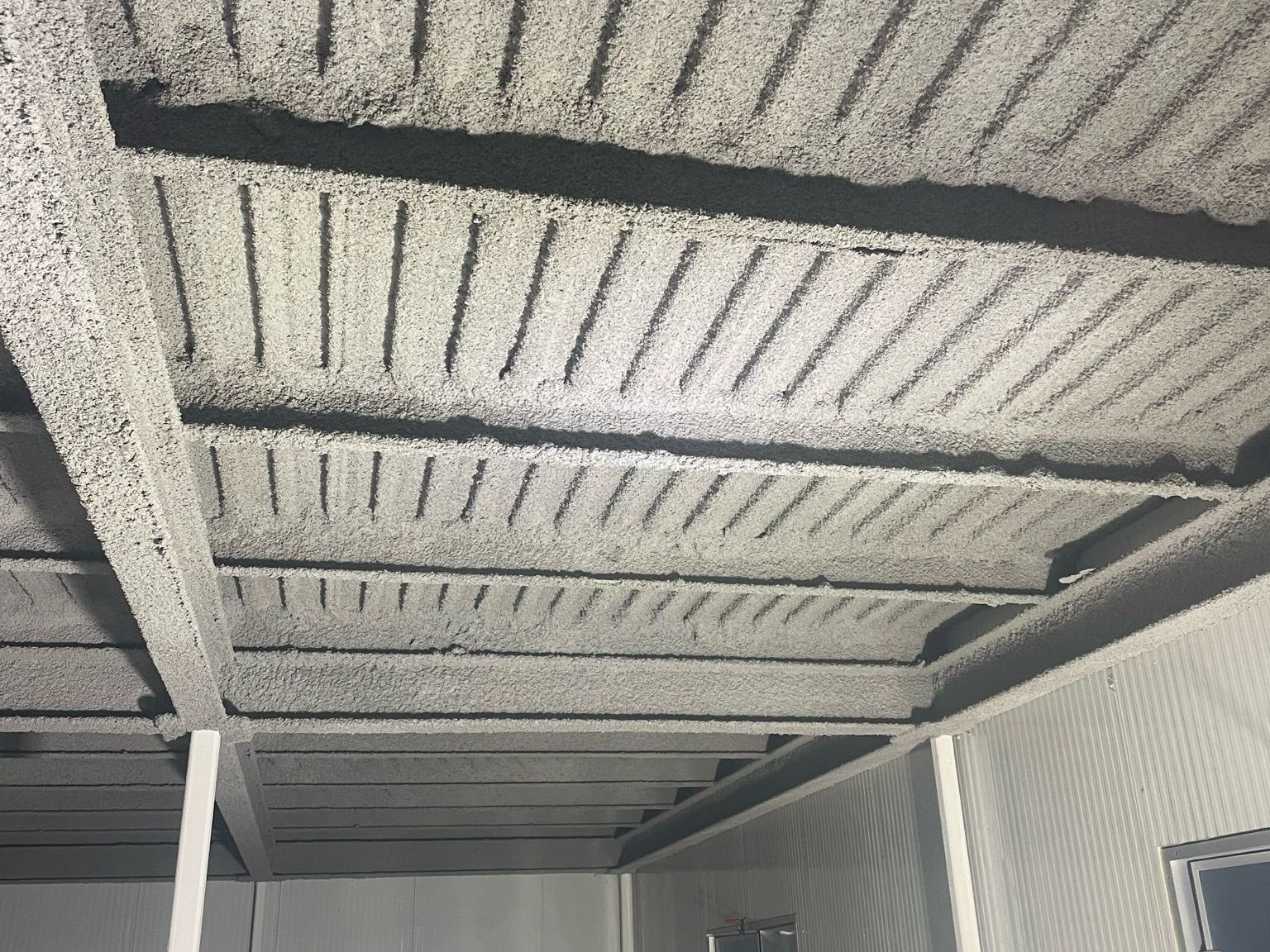

A room with a ceiling that has been spray painted white.

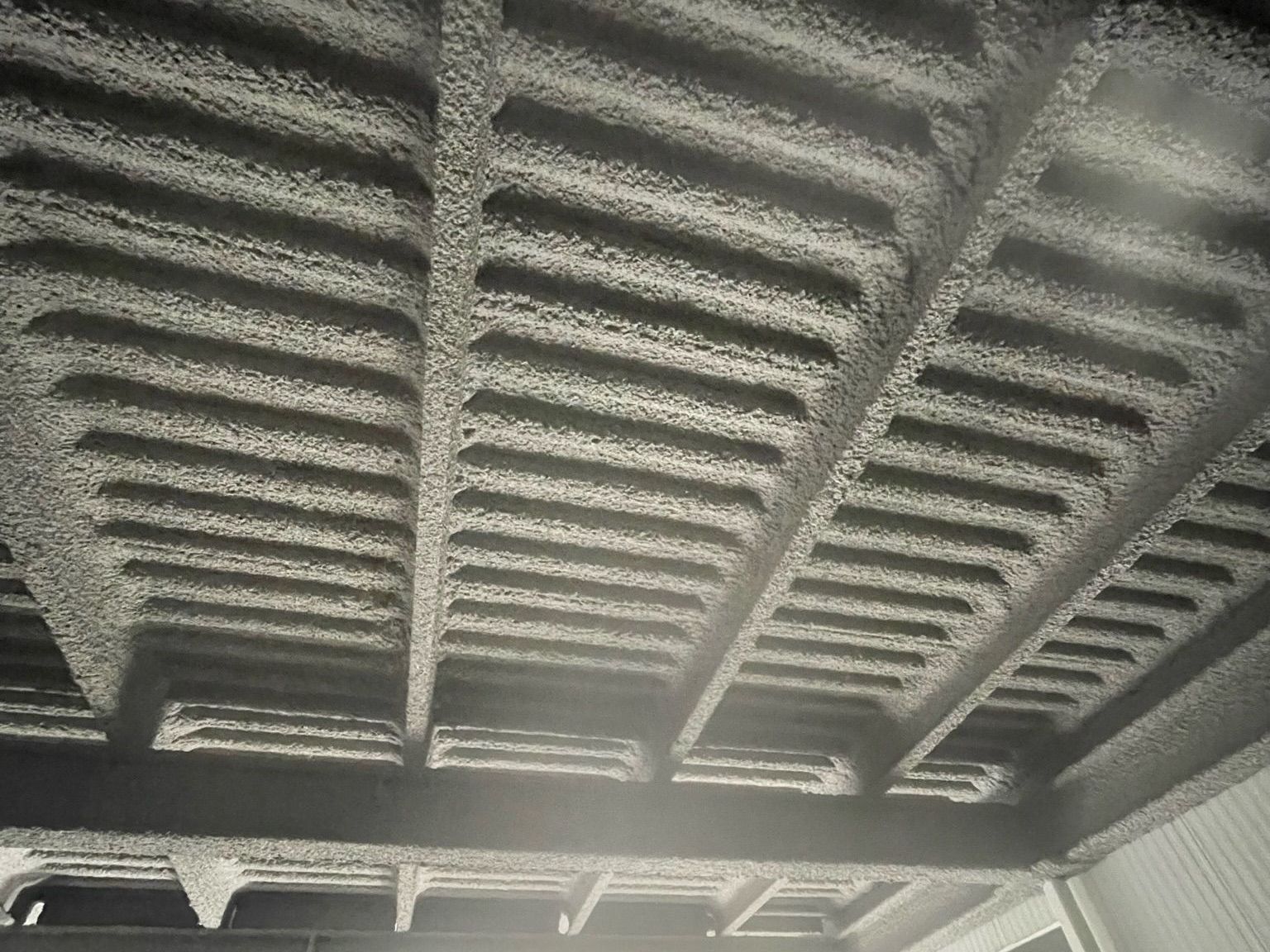

A black and white photo of the ceiling of a building.

Product Description:

MONOKOTE® Z-146 high density cementitious fireproofing has been developed by GCP Applied Technologies to meet specialty, commercial and industrial fireproofing requirements.


MONOKOTE® Z-146 is a Portland cement-based, factory-mixed material requiring only the addition of water on the jobsite for application. It is spray applied directly to structural steel (beams and columns), providing up to 4 hours of fire resistance. Its physical characteristics are excellent for areas exposed to environmental or climatic conditions.


MONOKOTE® Z-146 may be used in areas where high durability is required such as parking garages. This product is ideal for use in clean room environments where issues such as particle emissions and off gassing are critical to the interior environment within the building.


Uses:

MONOKOTE® Z-146 may be used in parking garages, exterior areas, mechanical rooms and other areas where a highly durable product is required.

Features & Benefits

MONOKOTE® Z-146 offers the following advantages to architects, engineers, and applicators:

  • Factory Pre mixed

    Ready to use. No job site proportioning required. Simply add water in a standard paddle-type plaster mixer and apply with conventional plastering equipment.

  • Non toxic

    The factory-mixed blend of common Portland cement and other inert materials requires only the addition of water for mixing and application.

  • Attractive finishes

    MONOKOTE® Z-146 may be sprayed or hand troweled after spraying to achieve a lightly textured appearance.

  • Equipment versatility

    MONOKOTE® Z-146 can be mixed in standard plaster mixer. After mixing, MONOKOTE® Z-146 may be spray-applied with commonly available pumping and spraying equipment.

  • Moisure resistant

    The Portland cement base affords excellent fire protection characteristics in areas subjected to high humidity.

  • Durable

    Hardness and durability help resist accidental physical damage.

  • Weatherable

    Able to withstand freeze/thaw, wind, rain and other climatic conditions.
